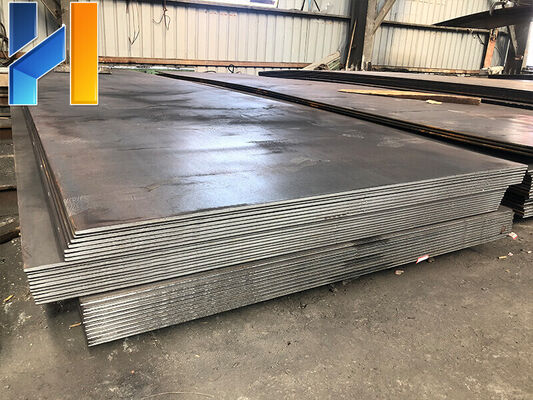

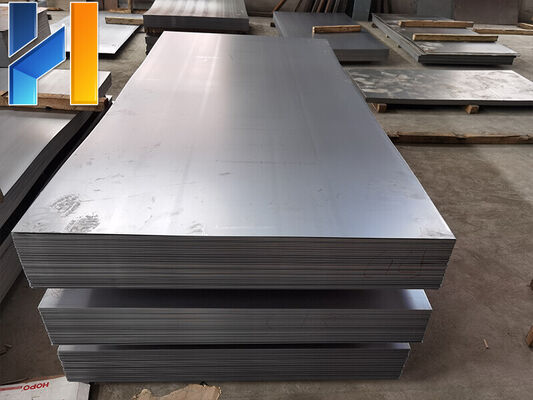

High Strength Carbon Steel Plate and Sheet with 0.15mm-300mm Thickness Available in Cold Rolled and Hot Rolled Options

Datos del producto

Espesor	0.15mm-300m m	Ancho	1250 mm a 1500 mm
Longitud	1000 mm-12000 mm	Técnica	Laminados en Frío y Laminados en Caliente
Calificación	Q550NQR1	Contenido de carbono	0,12-0,16% en peso
Contenido de silicio	0,75% en peso	Contenido del manganeso	2,00 % en peso
Contenido de fósforo	0,025% en peso	Contenido de azufre	0,008% en peso
Contenido de cobre	0,25-0,55% en peso	contenido del cromo	0,3-1,25% en peso
Contenido de níquel	0,65% en peso	Microestructura	Perlita
Tipo de acero al carbono	acero con alto contenido de carbono
Resaltar	High Strength Carbon Steel Plate , 0.15mm-300mm Thickness Carbon Steel Sheet , Cold Rolled And Hot Rolled Structural Steel Plate

Deja un mensaje

Descripción de producto

20Mn / 1022 / SWRCH22K / C22(1.0402) Carbon Steel Plate/Sheet

High-quality carbon steel plates designed for robust structural applications.

Product Overview

Carbon structural steel plate refers to carbon steel containing less than 0.8% carbon. It is characterized by lower sulfur, phosphorus, and non-metallic inclusions compared to general carbon structural steel, resulting in superior mechanical properties. Our plates are engineered for reliability and performance in demanding environments.

Key Features

Enhanced Durability
Superior Mechanical Properties
High Strength-to-Weight Ratio
Corrosion Resistance

Ideal Applications

Construction, heavy machinery, infrastructure projects, automotive manufacturing, shipbuilding, and general fabrication.

Product Attributes

Brand: N/A

Origin: N/A

Material: Carbon Structural Steel

Color: Mill Finish / As per specification

Packaging: N/A

Technical Specifications

Product Specifications

Product Name	Standard	Material Grades	Dimensions
Carbon steel sheet / steel plate	JIS, AISI, ASTM, GB, DIN, EN	ASTM: Grade B, Grade C, Grade D, A36, Grade 36, Grade 40, Grade 42, Grade 50, Grade 55, Grade 60, Grade 65, Grade 80 EN: S185, S235JR, S275JR, S355JR, S420NL, S460NL S500Q, S550Q, S620Q, S690Q JIS: SS330, SPHC, SS400, SPFC, SPHD, SPHE	Thickness: 0.15mm-300mm Width: 1250mm 1500mm or as per client's requirement Length: 1000mm-12000mm or according to customer's special request

Manufacturing Technique

Cold Rolled And Hot Rolled

Chemical Composition - Primary Elements

Grade	C	Si	Mn
Cor-ten A	0.12	0.25-0.75	0.20-0.50
Cor-ten B	0.16	0.3-0.5	0.8-1.25
SPA-H	0.12	0.2-0.75	0.60
9CuPCrNi-A	0.12	0.2-0.75	0.20-0.50
Q235NH	0.13	0.10-0.40	0.20-0.60
Q295NH	0.15	0.10-0.50	0.30-1.00
Q355NH	0.16	0.5	0.50-1.50
Q415NH	0.12	0.65	1.10
Q460NH	0.12	0.65	1.50
Q500NH	0.12	0.65	2.0
Q550NH	0.12	0.65	2.0

Chemical Composition - Secondary Elements

Grade	P	S	Cu
Cor-ten A	0.01-0.2	0.03	0.25-0.55
Cor-ten B	0.03	0.03	0.25-0.40
SPA-H	0.07-0.15	0.03	0.25-0.55
9CuPCrNi-A	0.07-0.15	0.040	0.25-0.55
Q235NH	0.03	0.030	0.25-0.55
Q295NH	0.03	0.030	0.25-0.55
Q355NH	0.03	0.030	0.25-0.55

Carbon Steel Classification

Carbon Content (wt.%)	Microstructure	Properties	Examples	Standards
< 0.25	Ferrite, pearlite	Low hardness and cost. High ductility, toughness, machinability and weldability	AISI 304, ASTM A815, AISI 316L	Low-carbon steel
0.25 – 0.60	Martensite	Low hardenability, medium strength, ductility and toughness	AISI 409, ASTM A29, SCM435	Medium-carbon steel
0.60 – 1.25	Pearlite	High hardness, strength, low ductility	AISI 440C, EN 10088-3	High-carbon steel
